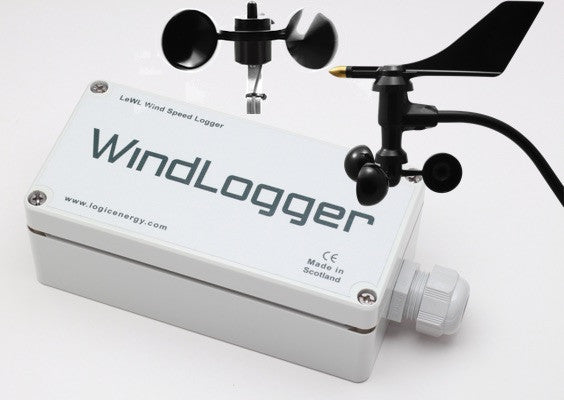

WindLogger with 2 anemometers & wind vane

£660.00

This product will be despatched within 10-15 working days

---- QUESTIONS AND ANSWERS ----

Category: anemometer, datalogger, LeWL wind logge, Wind, Wind measurement, windvane

Overview
Downloads
Specifications
Reviews

The new LeWL WindLogger has been manufactured since 2008. We have sold thousands of these little wind data loggers all over the world and they have an excellent reputation for their stability, accuracy and endurance.

The new WindLogger has been re-designed with major enhancements, thanks to the small wind enthusiastic community. We have listened to their feedback and have made several improvements: Simpler than ever installation, just plug the Pro-D anemometer into the internal 6P4C connector. If you use any other type of anemometer, that is ok too. You can connect it directly to its internal sensor input connection block. Automatic anemometer detection system. The new WindLogger will let you know if there's an anemometer connected and working before leaving site.

Option for external temperature probe

You will require 2 x batteries per data logger as these are not included. The Windlogger is designed to work with alkaline type C cells.

Outstanding battery life up to 1 year at 1 minute logging interval or 2 years at 10 minutes intervals

Designed in Scotland : Manufactured in the UK
Please Note: Price does not include VAT. For UK orders VAT is calculated at checkout. International orders are not subject to VAT.
Download manual and quick guide here or see F.A.Q. for WindLogger and videos
Specifications
- Record wind speeds from up to 2 anemometers simultaneously - Average wind speed, gust wind speed and standard deviation (turbulence) and wind direction
- Input for external temperature probe
- Up to 1 year of battery life recording 1 minute data or up to 3 years battery life recording in 10 minutes intervals. (10 seconds available for testing purposes)> - Time-stamped data recorded to microSD card in standard CSV format for import into Excel or wind analysis software. Includes all sensor values, plus battery status. - Simple analysis tools included. (excel template for your manipulation or Java app)
- Fully weatherproof IP65 rated enclosure

SD card memory storage
- Files in standard CSV ASCII format, archived into monthly files
- Records average, standard deviation and maximum values
- Data recorded with date and time stamp
- microSD flash card FAT32
Four sensor inputs
- Log two anemometers at once (2 digital inputs)- Supports dry contact (volt-free) switch, Hall effect switch, open collector or 3V logic level signal Wind speed input
- Potentiometer type wind direction sensor, 1k - 20k ohms.
- Support for external temperature sensor
Serial port to interface with PC
- RS232 compatible for reading values while logging data
- Setup menu via serial port or via SD card
- 4800bps
- Custom sensor factor setup via RS232

Mechanical information
- Operating Temperature -20C to +50C (check with us first for extreme weather applications)
- Sealed IP65 enclosure with gland for sensor wires
- Dimensions: 160x80x55mm
- Weight: 450gm including batteries

Trade Tariff/HS code for import/export
- 854290

Review left on the WindLooger with Anemometer & Wind Direction product, by Robert Holl, “Monitori...

The wind gauge is working very well. Our trainees built a 10-meter-high steel tower, and the measuring equipment has been hanging there and operating reliably for a year. The measurements provided us with the information we needed. We are now changing the battery for the first time after a year, which is also great.

Review left on the WindLogger product, by Bram Peirs, "From Waste To Wind"

We purchased Lewl Windlogger for our projects after technical support professionally explained what the error margin of the standard anemometer is compared to a calibrated one. We are happy with the product and want to order more units.

Review left on the WindLogger product, by Beat Hofer, "Monitoring wind in Switzerland"

The wind logger is installed near a cow barn, where I rented the roof, to put a 152 kWp PV-plant. Thus, it would be easy to connect a future wind generator with the electricity grid. To see if the wind is good enough to put a small wind turbine generator system in this area. I am loggin the wind for one year started in February 2023. Then I’ll decide to ask the local authority for permission. I installed the wind logger on a 12-meter pole. Looks like the wind speed in this area of Switzerland is not very promising. Although during winter wind is normally stronger, hence having windlogger is great decision.

Review left on the WindLogger product, by Beat Hofer, "thanks a lot for your commitment!"

The set up of the wind logger was easy and worked from beginning as promised. My problem to import the CSV file in Excel, was quickly solved by the Windlogger team.

Review left on the WindLogger product, by Franko Arenas Díaz, "Atacama Desert"

Studying the aerosol/particulate material deposition for Atacama Desert, we set a west-east transect of dust traps starting close to the Pacific Ocean until the Andes Cordillera. To study the atmospheric deposition and its temporal-spatial dynamics we purchased 3 wind trackers close to the dust traps so we analyse the wind speed and direction. Excellent customer support with our first international purchase out of Chile.

1 2

Customer Questions

Ask Question

Q: What is the closest interval this logger can record?

A: 10 seconds, we recommend this setup only for short periods of time as it generates a lot of data and consumes much more battery. The other options are 1 minute and 10 minutes recording. The sampling rate is discrete.

Q: Dear Sir/ Madame,i would like to ask how long shipping takes to Vienna/Austria for this partikular Product? Is the Product in stock?best regardsRoman Flores Espinoza

A: Usually 2 to 4 days.

Q: We need to get longer cables since our installation will be on an existing 22m pole. Do you have longer cables available within this set, i.e. 25m (including reserve)? Thanks and best regards!

A: The standard cable is 13m long. We don't usually recommend extending the cable as it can be an entry point for water ingress if it has not been terminated right.
